pspforecast
Shellfish toxicity forecast serving package
Requirements
Installation
remotes::install_github("BigelowLab/pspforecast")
Reading the forecast database
Variables:
-
version - the version/configuration of the model used to make the prediction
-
ensemble_n - number of ensemble members used to generate prediction
-
location - the sampling station the forecast is for
-
date - the date the forecast was made on
-
name - site name
-
lat - latitude
-
lon - longitude
-
class_bins - the bins used to classify shellfish total toxicity (i.e. 0: 0-10, 1: 10-30, 2: 30-80, 3: >80)
-
forecast_date - the date the forecast is valid for (i.e. one week ahead of when it was made)
-
predicted_class - the predicted classification at the location listed on the forecast_date (in this case 0-3)
-
p_0 - class 0 probability
-
p_1 - class 1 probability
-
p_2 - class 2 probability
-
p_3 - class 3 probability
-
p3_sd - class 3 probability standard deviation
-
p_3_min - class 3 minimum probability (from ensemble run)
-
p_3_max - class 3 maximum probability (from ensemble run)
-
predicted_class - the predicted classification
predictions <- read_forecast(year = "2024") |>
distinct()
glimpse(predictions)
## Rows: 464
## Columns: 19
## $ version <chr> "v0.3.0", "v0.3.0", "v0.3.0", "v0.3.0", "v0.3.0", …
## $ ensemble_n <dbl> 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10…
## $ location <chr> "PSP10.11", "PSP10.33", "PSP12.01", "PSP12.03", "P…
## $ date <date> 2024-05-06, 2024-05-06, 2024-05-08, 2024-05-08, 2…
## $ name <chr> "Ogunquit River", "Spurwink River", "Basin Pt.", "…
## $ lat <dbl> 43.25030, 43.56632, 43.73848, 43.73064, 43.79553, …
## $ lon <dbl> -70.59540, -70.27305, -70.04343, -70.02556, -69.94…
## $ class_bins <chr> "0,10,30,80", "0,10,30,80", "0,10,30,80", "0,10,30…
## $ forecast_start_date <date> 2024-05-10, 2024-05-10, 2024-05-12, 2024-05-12, 2…
## $ forecast_end_date <date> 2024-05-16, 2024-05-16, 2024-05-18, 2024-05-18, 2…
## $ p_0 <dbl> 93, 100, 100, 99, 31, 3, 95, 94, 95, 95, 100, 99, …
## $ p_1 <dbl> 6, 0, 0, 1, 44, 13, 4, 5, 4, 5, 0, 1, 0, 42, 9, 40…
## $ p_2 <dbl> 1, 0, 0, 0, 18, 43, 0, 1, 0, 0, 0, 0, 0, 2, 0, 17,…
## $ p_3 <dbl> 0, 0, 0, 0, 7, 42, 0, 0, 0, 0, 0, 0, 0, 0, 0, 5, 3…
## $ p3_sd <dbl> 2.537746e-02, 1.702311e-04, 5.835063e-07, 3.170006…
## $ p_3_min <dbl> 2.803591e-02, 1.613240e-06, 4.298889e-09, 3.494154…
## $ p_3_max <dbl> 1.114067e-01, 5.424280e-04, 1.839769e-06, 9.452227…
## $ predicted_class <dbl> 0, 0, 0, 0, 1, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1,…
## $ f_id <chr> "PSP10.11_2024-05-06", "PSP10.33_2024-05-06", "PSP…
2024 Season Results
Metrics
- tp - The model predicted class 3 and the following week’s measurement was class 3
- fp - The model predicted class 3 and the following week’s measurement was not class 3
- tn - The model predicted class 0,1,2 and the following week’s measurement was in class 0,1,2
- fn - The model predicted class 0,1,2 and the following week’s measurement was class 3
- accuracy - Measure of how many correct classifications were predicted
- cl_accuracy - Considering predictions are those that correctly predicted toxicity above or below the closure limit or not
- precision - TP/(TP+FP)
- sensitivity - TP/(TP+FN)
- specificity - TN/(TN+FP)
- f_1
## # A tibble: 1 × 10
## tp fp tn fn accuracy cl_accuracy f_1 precision sensitivity
## <int> <int> <int> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 2 4 397 7 0.717 0.973 0.267 0.333 0.222
## # ℹ 1 more variable: specificity <dbl>
2023 Season Results
predictions <- read_forecast(year = "2023")

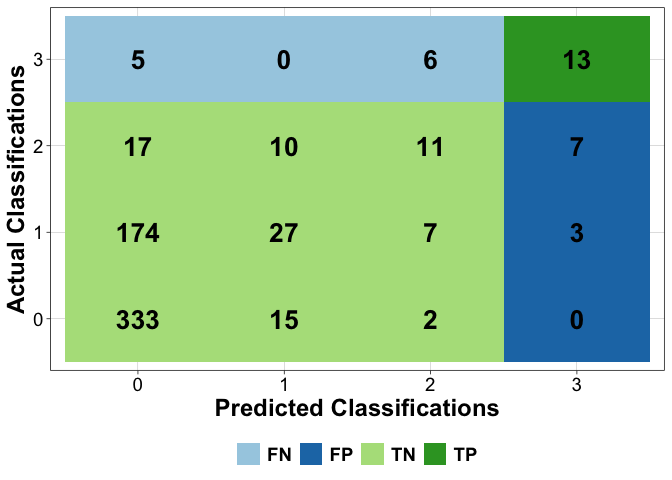

Confusion Matrix

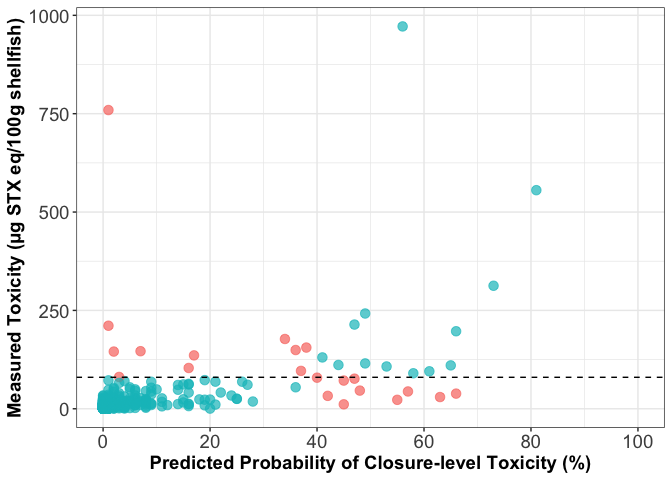

Probability of Closure-level Toxicity vs Measured Toxicity
Metrics
## # A tibble: 1 × 10
## tp fp tn fn accuracy cl_accuracy f_1 precision sensitivity
## <int> <int> <int> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 0 0 550 0 0.993 1 NaN NaN NaN
## # ℹ 1 more variable: specificity <dbl>
2022 Season Results

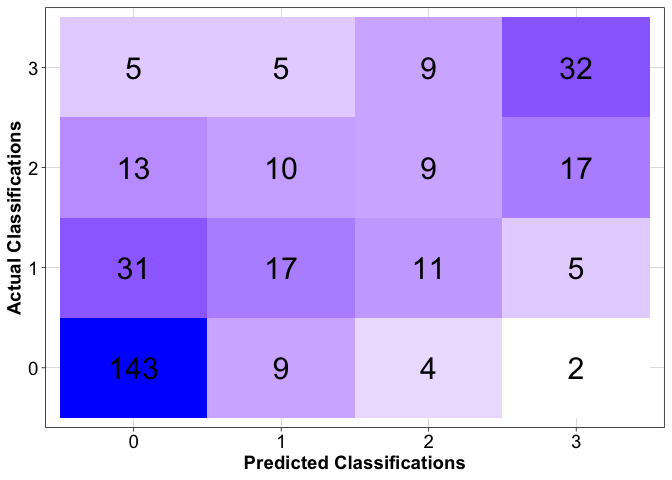

Confusion Matrix

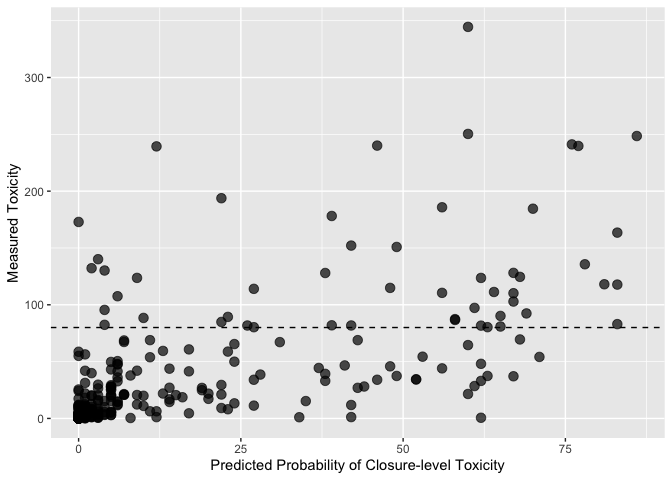

Probability of Closure-level Toxicity vs Measured Toxicity
Metrics
## # A tibble: 1 × 10
## tp fp tn fn accuracy cl_accuracy f_1 precision sensitivity
## <int> <int> <int> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 16 20 603 12 0.799 0.951 0.5 0.444 0.571
## # ℹ 1 more variable: specificity <dbl>

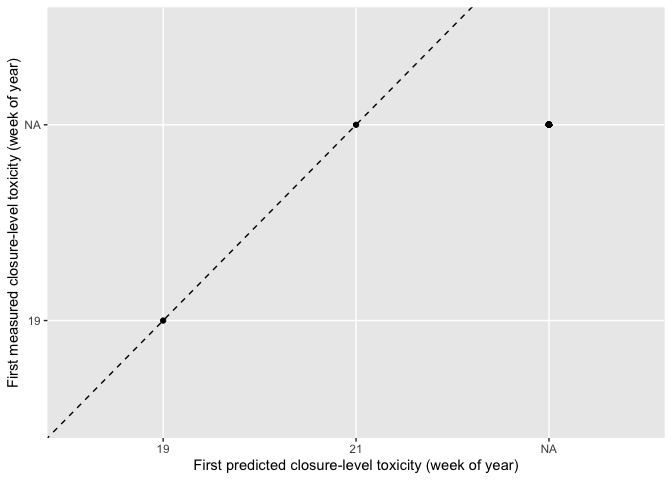

Timing of initial closure-level predictions
2021 Season Results
Confusion Matrix
Probability of Closure-level Toxicity vs Measured Toxicity
Metrics
## # A tibble: 1 × 10
## tp fp tn fn accuracy cl_accuracy f_1 precision sensitivity
## <int> <int> <int> <int> <dbl> <dbl> <dbl> <dbl> <dbl>
## 1 2 3 463 0 0.938 0.994 0.571 0.4 1
## # ℹ 1 more variable: specificity <dbl>
Closure-level accuracy

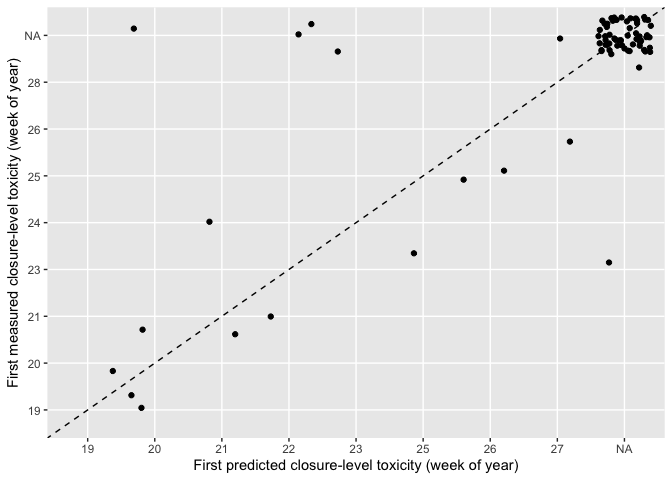

Timing of initial closure-level predictions

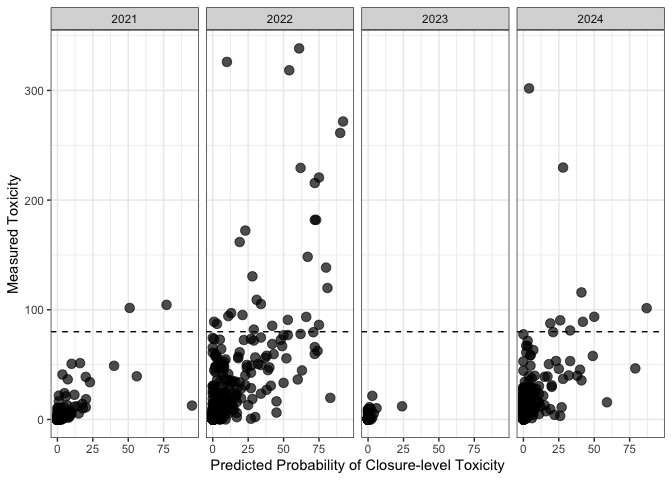

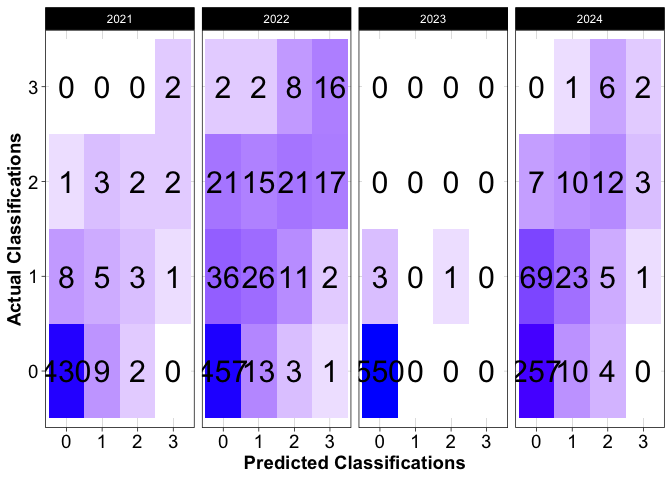

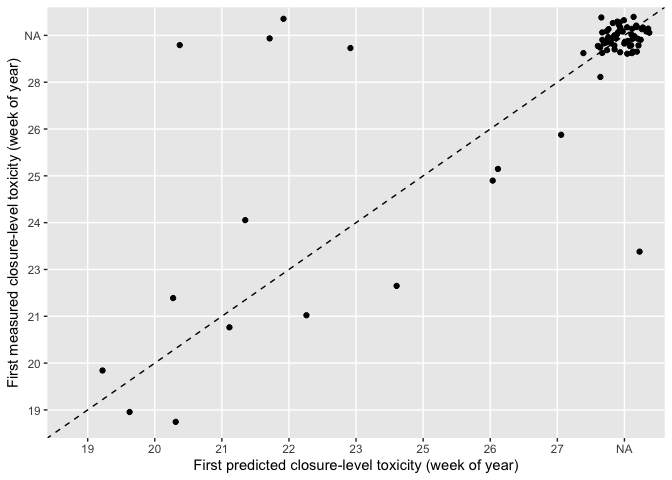

Possible manuscript plot(s)
Last Updated
## [1] "2024-10-02"
